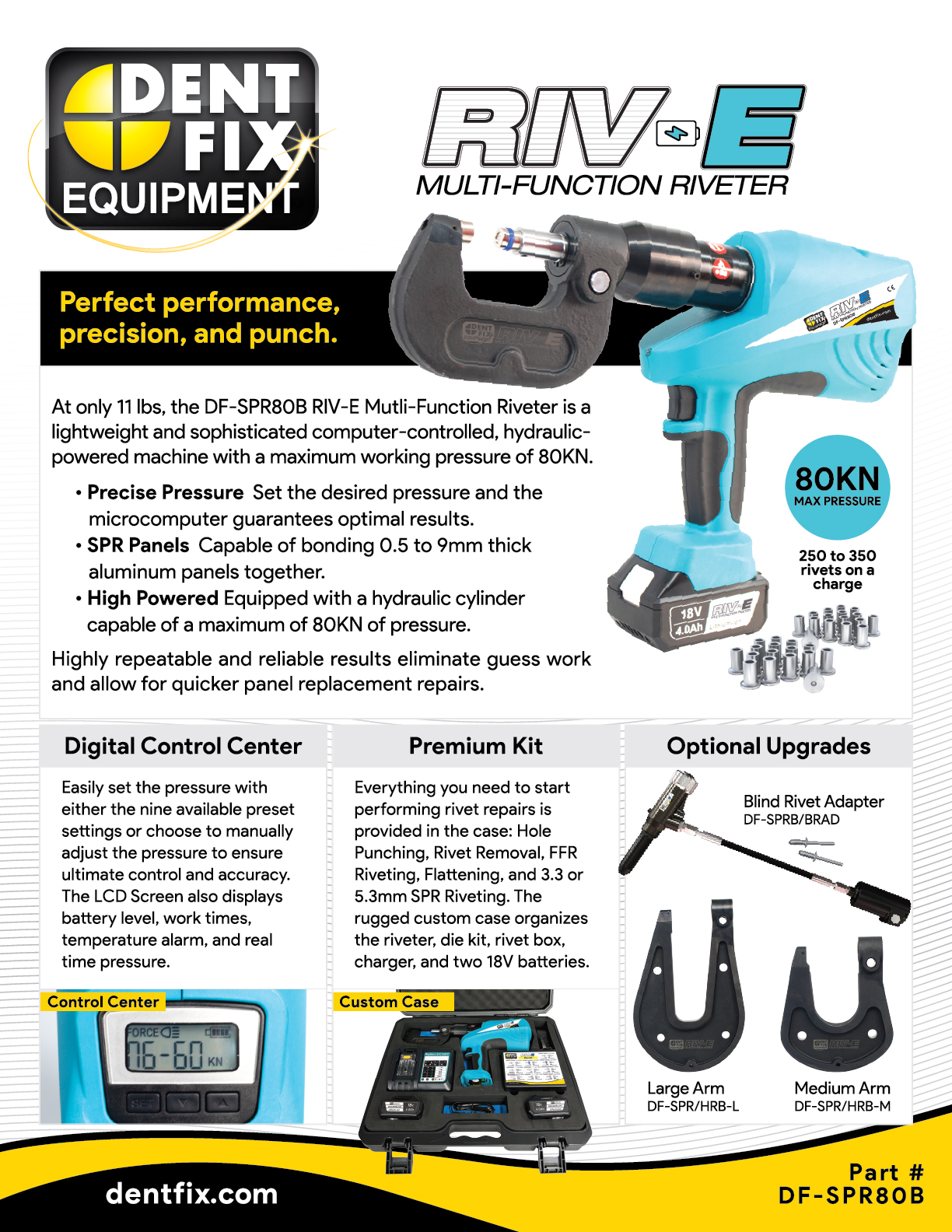

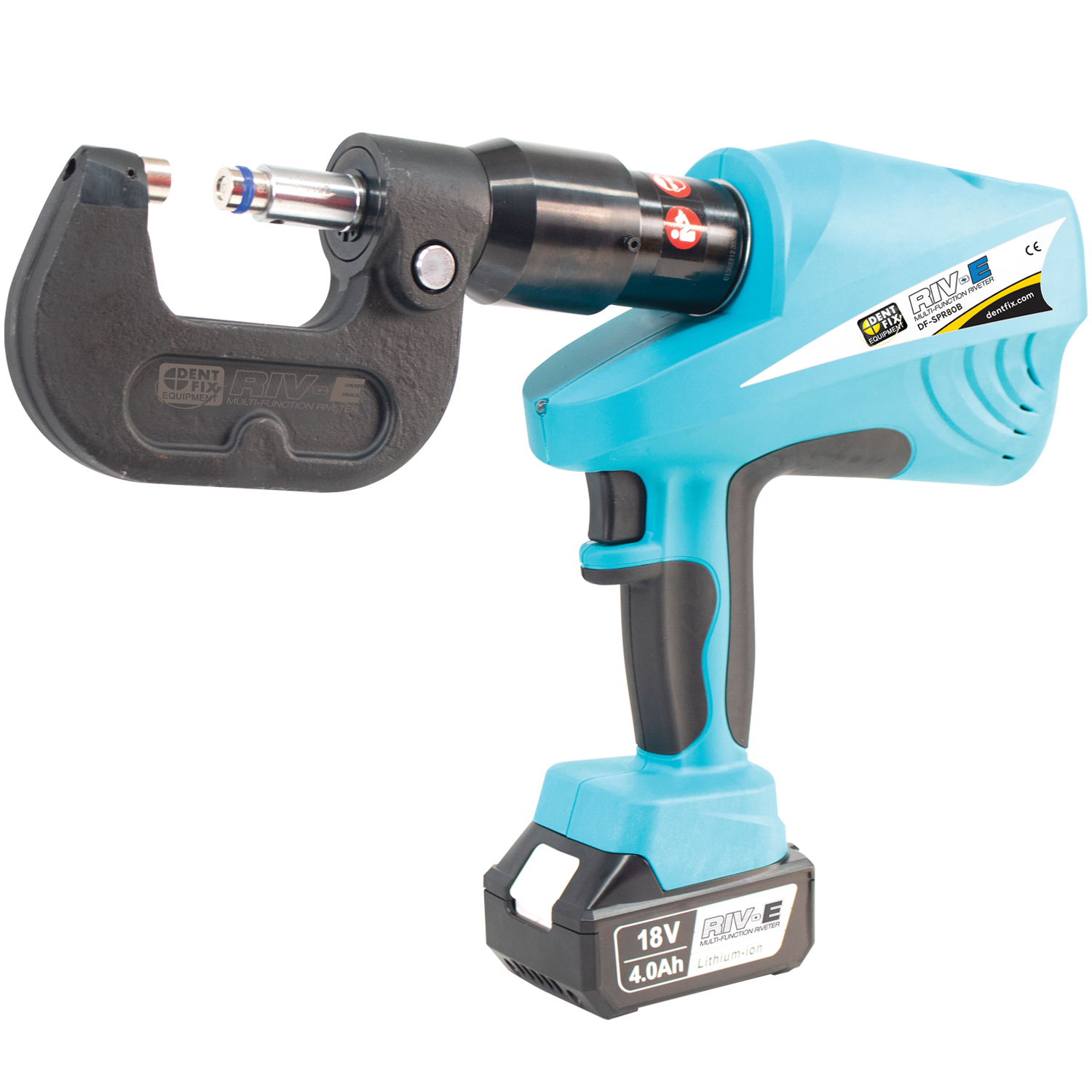

RIV-E 80 - Multi-Fuction Riveter

At only 11 lbs, the DF-SPR80B RIV-E Mutli-Function Riveter is a lightweight and sophisticated computer-controlled, hydraulic- powered machine with a maximum working pressure of 80KN.

• Precise Pressure - Set the desired pressure and the microcomputer guarantees optimal results.
• SPR Panels - Capable of bonding 0.5 to 9mm thick aluminum panels together.
• High Powered - Equipped with a hydraulic cylinder capable of a maximum of 80KN of pressure.
• Digital Control Center - Easily set the pressure with either the nine available preset settings or choose to manually adjust the pressure to ensure ultimate control and accuracy. The LCD Screen also displays battery level, work times, temperature alarm, and real time pressure.

Highly repeatable and reliable results eliminate guess work and allow for quicker panel replacement repairs.

Remove and insert multiple types of rivets to bond automotive panels during the replacement procedure: 3.3mm & 5.3mm Self-Piercing Rivets (SPR), Flow Form Rivets (FFR), Hole Punching, and Flattening. Optional equipment can be purchased separately that will enable this riveter to install Blind Rivets.

• Precise Pressure - Set the desired pressure and the microcomputer guarantees optimal results.
• SPR Panels - Capable of bonding 0.5 to 9mm thick aluminum panels together.
• High Powered - Equipped with a hydraulic cylinder capable of a maximum of 80KN of pressure.
• Digital Control Center - Easily set the pressure with either the nine available preset settings or choose to manually adjust the pressure to ensure ultimate control and accuracy. The LCD Screen also displays battery level, work times, temperature alarm, and real time pressure.

Everything you need to start performing rivet repairs is provided in the case: Hole Punching, Rivet Removal, FFR Riveting, Flattening, and 3.3 or 5.3mm SPR Riveting. The rugged custom case organizes the riveter, die kit, rivet box, charger, and two 18V batteries.

MAX PRESSURE: 8 Tons (80 KN)
WEIGHT: 11 lbs
WORK PERIOD: 3-5s/time
WORK STROKE: 40mm
SPR DIE SETS: 3.3mm & 5.3mm
EXTRACTION DIE SET: Yes
FLOW FORM DIE SET: Yes
PUNCH DIE SET: Yes
FLATTENING DIE SET: Yes
MOTOR VOLTAGE: 18V DC
BATTERY: DC 18V 4AH, Lithium CHARGER: AC 100V-240V 50-60HRZ
CHARGE TIME: 1 Hour
WORK TIME/FULL CHARGE: 300-400 Times (According to Rivet Type)
Warranty: 1 year or 20,000 times cycle, whichever comes first

Rugged plastic case with foam cut out inserts to secure the equipment in a safe place.

.
