ALUMINUM REPAIR TOOLS
RIV-E 60 - Multi-Fuction Riveter
Description

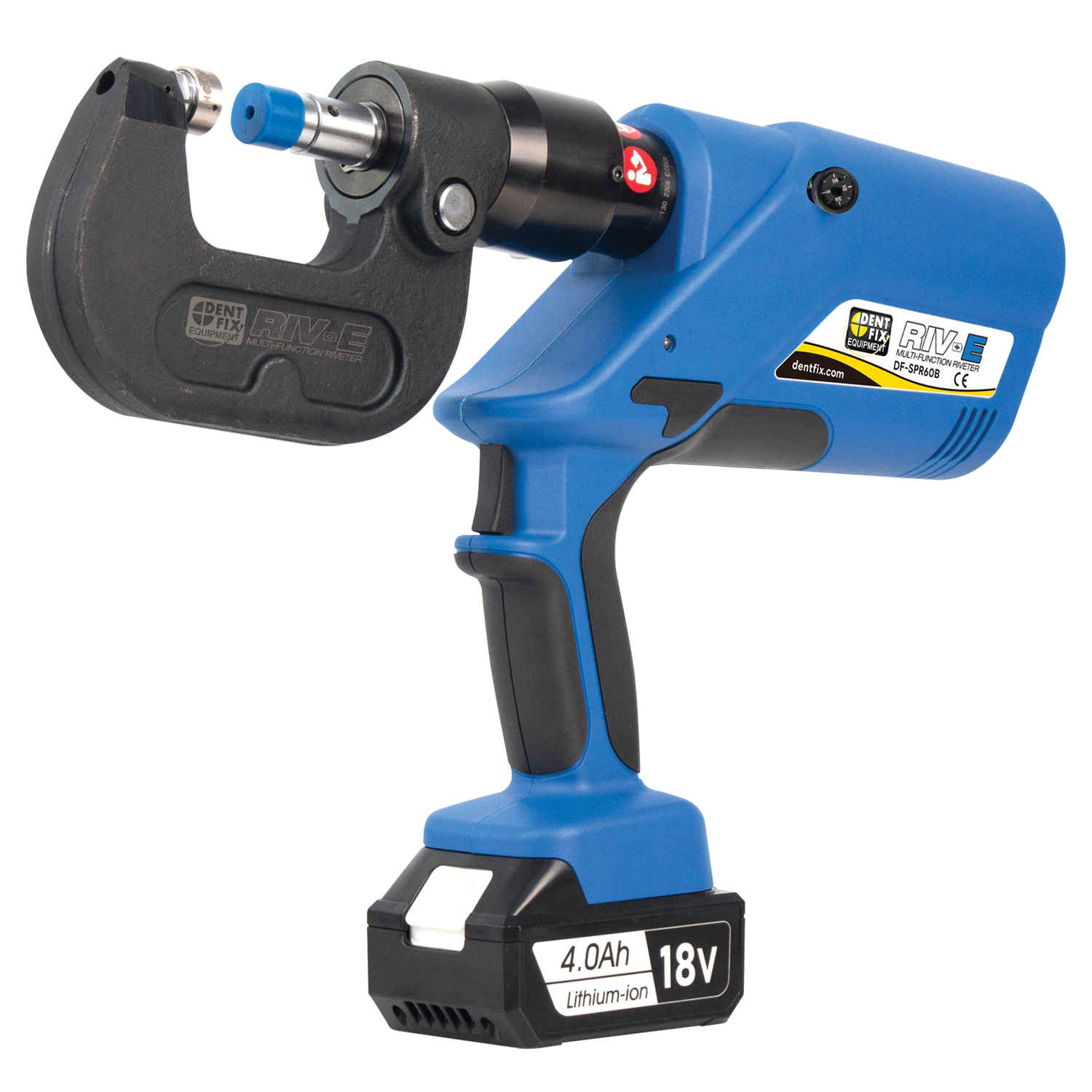

The DF-SPR60B RIV-E Mutli-Function Riveter is an easy to operate panel replacement tool.
- Auto Pressure - Hold the trigger and the unit automatically releases pressure when complete.
- SPR Panels - Capable of bonding 0.5 to 9mm thick aluminum panels together.
- Optimal Pressure - Range Set to a minimum of 30KN up to a maximum of 60KN of pressure.
- Dial Control - The rotational dial allows the user to easily set the desired pressure settings.
Highly repeatable and reliable results eliminate guess work and allow for quicker panel replacement repairs.
Application
Remove and insert multiple types of rivets to bond automotive panels during the replacement procedure: 3.3mm & 5.3mm Self-Piercing Rivets (SPR), Flow Form Rivets (FFR), Hole Punching, and Flattening. Optional equipment can be purchased separately that will enable this riveter to install Blind Rivets.
Feature & Benefits
- Auto Pressure - Hold the trigger and the unit automatically releases pressure when complete.
- SPR Panels - Capable of bonding 0.5 to 9mm thick aluminum panels together.
- Optimal Pressure - Range Set to a minimum of 30KN up to a maximum of 60KN of pressure.
- Dial Control - The rotational dial allows the user to easily set the desired pressure settings.
Includes
Main Body, Small Arm, Dies Kit, Charger, Battery, Sling, and Rugged Case. Dies for 3.3 and 5.3mm SPR, Removal, Punching, Flow Form, Solid, and Flattening.
Specifications
MAX PRESSURE: 6 Tons (60 KN)
MIN PRESSURE: 3 Tons (30 KN)
WEIGHT: 11 lbs
WORK PERIOD: 3-5s/time
WORK STROKE 35-40mm
SPR DIE SETS: 3.3mm & 5.3mm
EXTRACTION DIE SET: Yes
FLOW FORM DIE SET: Yes
PUNCH DIE SET: Yes
FLATTENING DIE SET: Yes
MOTOR VOLTAGE: 18V DC
BATTERY: DC 18V 4AH, Lithium CHARGER: AC 100V-240V 50-60HRZ
CHARGE TIME: About 1 Hour
WORK TIME/FULL CHARGE: 300-400 Times (According to Rivet Type)
Storage
Rugged plastic case with foam cut out inserts to secure the equipment in a safe place.
Downloads
Upgrades
Yes! See You May Also Like section below.
